PRODUCT Details

A sand cleaning machine, beach cleaner, or (colloquially) sandboni is a vehicle that drags a raking or sifting device over beach sand to remove rubbish and other foreign matter. Beach cleaning machines work by collecting sand by way of a scoop or drag mechanism and then raking or sifting anything large enough to be considered foreign matter, including sticks, stones, litter and other items. Similar applications include lake beaches,sandfields for beach volleyball and kindergaten and playing field sandpits.
Beach cleaner can work quickly on the beach with a tractor generally powered for 50-90-hoesepower. The spline-mounted pump enables the beach cleaner to sift all kinds of waste and offshore floater. And the waste is collected into the collecting tank controlled by hydraulic drive and then can be tipped directly onto a truck. Finally ,the machine can aerate and compress the sand.

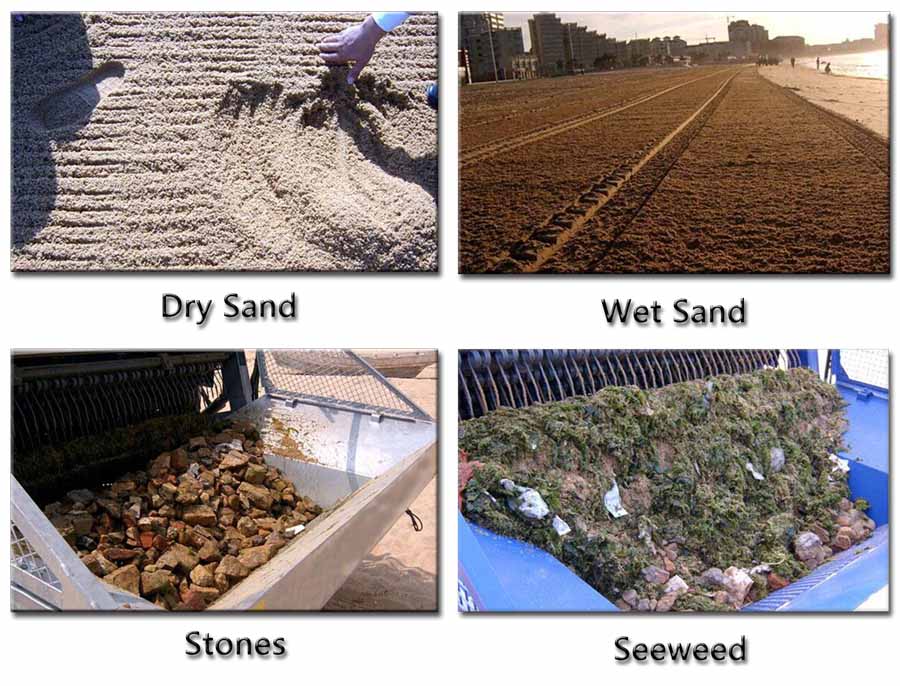

Beach cleaner can be used all kinds of dry or wet beach, also can remove waste like litter, other debris from the beach (Cigarette butts, glass shards, pieces of wood, beverage cans, pebbles and so on ), unwanted seaweed and other polluted things.

Model Ld-1700                                          Technical Data

       Capacity screen surface

+3.74 M²

       Operating cleaning width

1700mm

       Cleaning depth

0-120mm

       Beating rotating axles

1

       Overall length

4465mm

       Width

2540mm

       Height

1470mm

       Size of tires (standard)

26x12.00-12

       Net weight

1550kg

       Unloading height

1300mm

       Hopper capacity

1.8M³

       Power take-off speed

720RPM / PTO Z6,1 3/8"

       Transmission

Hydraulic

       Noise

75dB

       Min-max power

60-80 kw

       Drawbar eye

Cat.1

       Tension roller for the screening belt

No

       Tractor hydraulics

2 double-acting circuits

       Sifting band screen

15x25/20x30/25x35mm

       Sifting band metal

17/21 mm

       Max. cleaning capacity

15300 m2/h


Working sketches of cleaning
